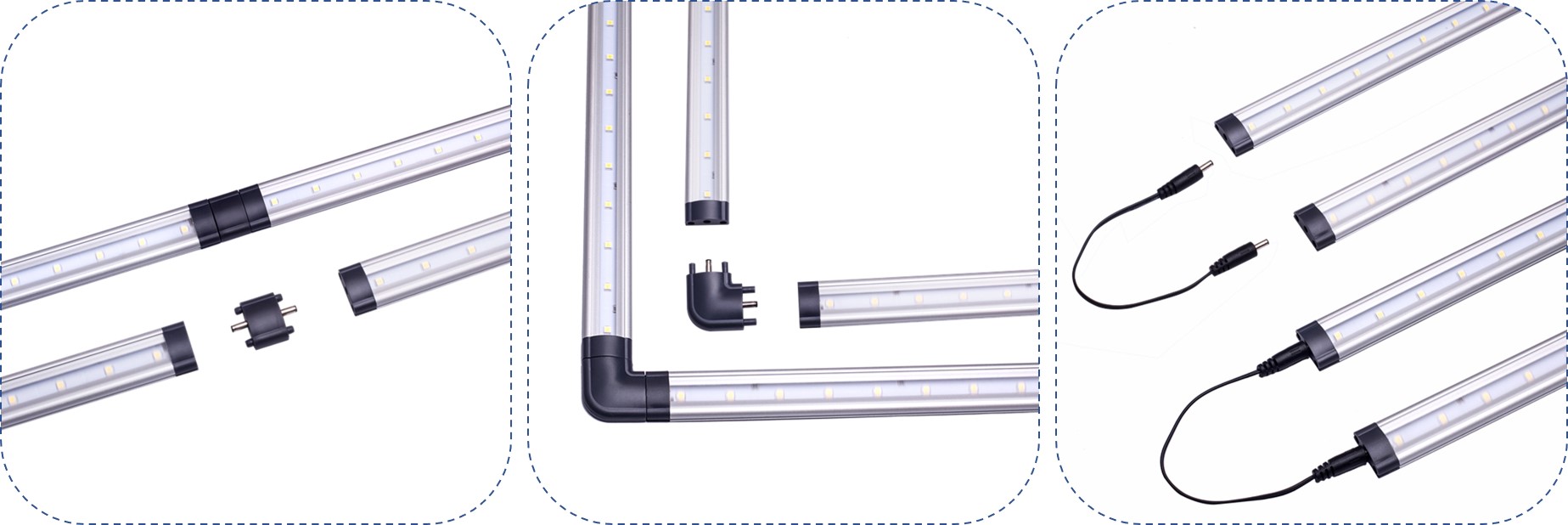

Connection could be in linear

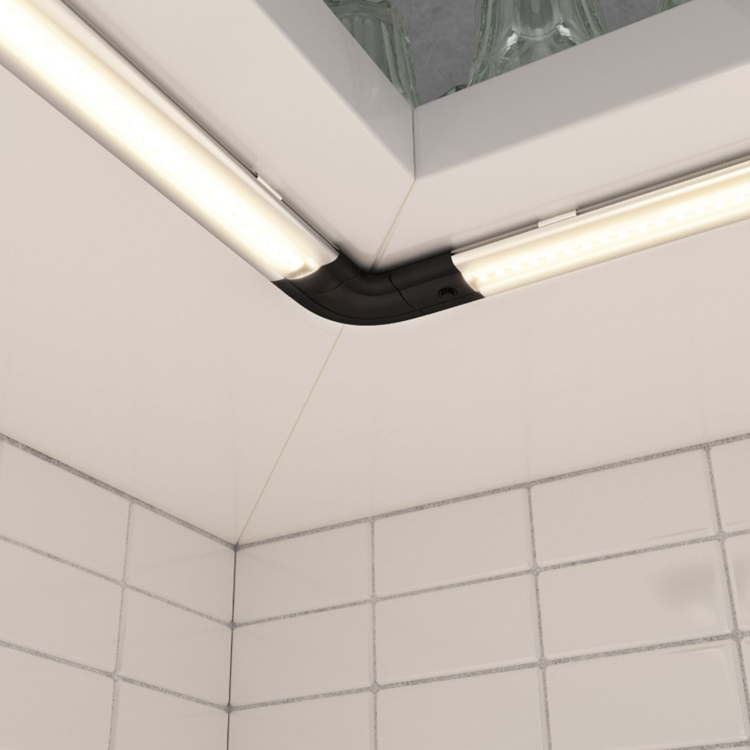

Connection could be in right angle
Connection could be in flexible cable

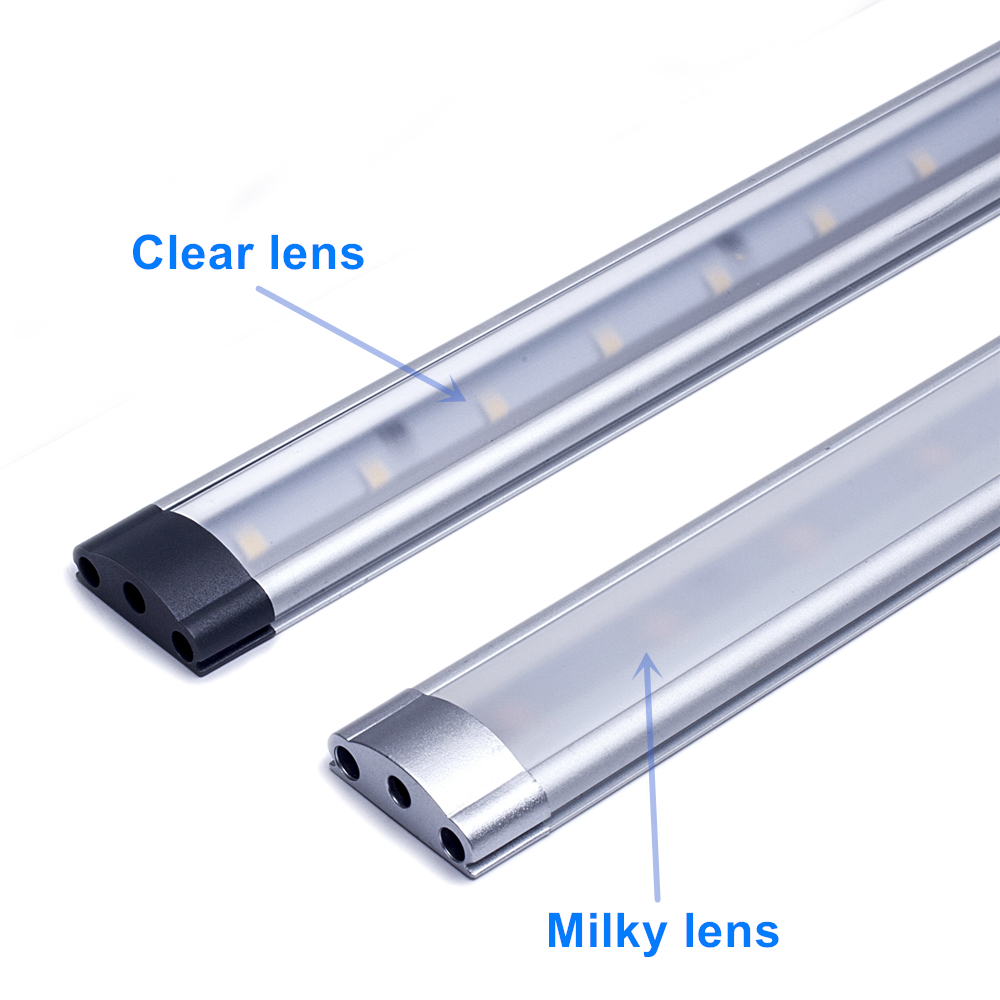

When connected in parallel (using junction box), there is no limited length based on sufficient driver. Touch the metal body of light and last more than 1 second. Aluminum extrusion with black plastic end caps, PMMA lens (transparent lens/milky lens).

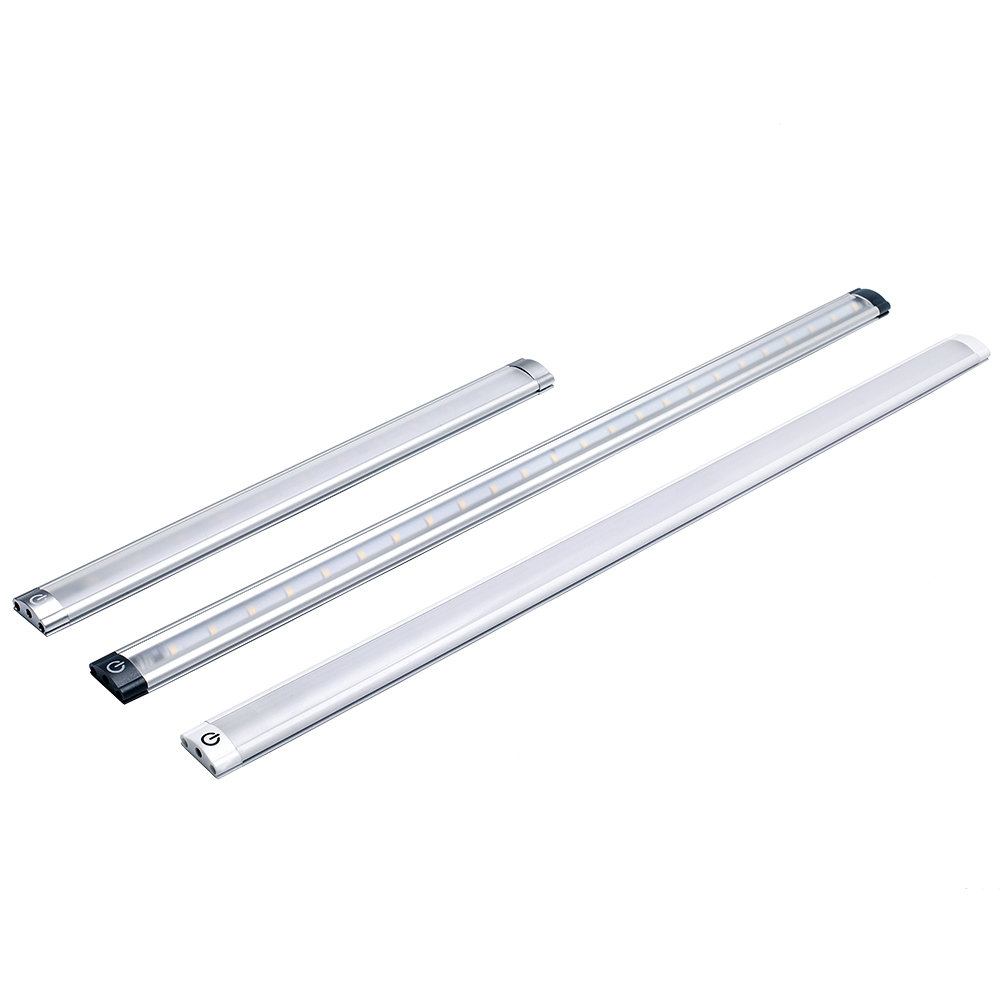

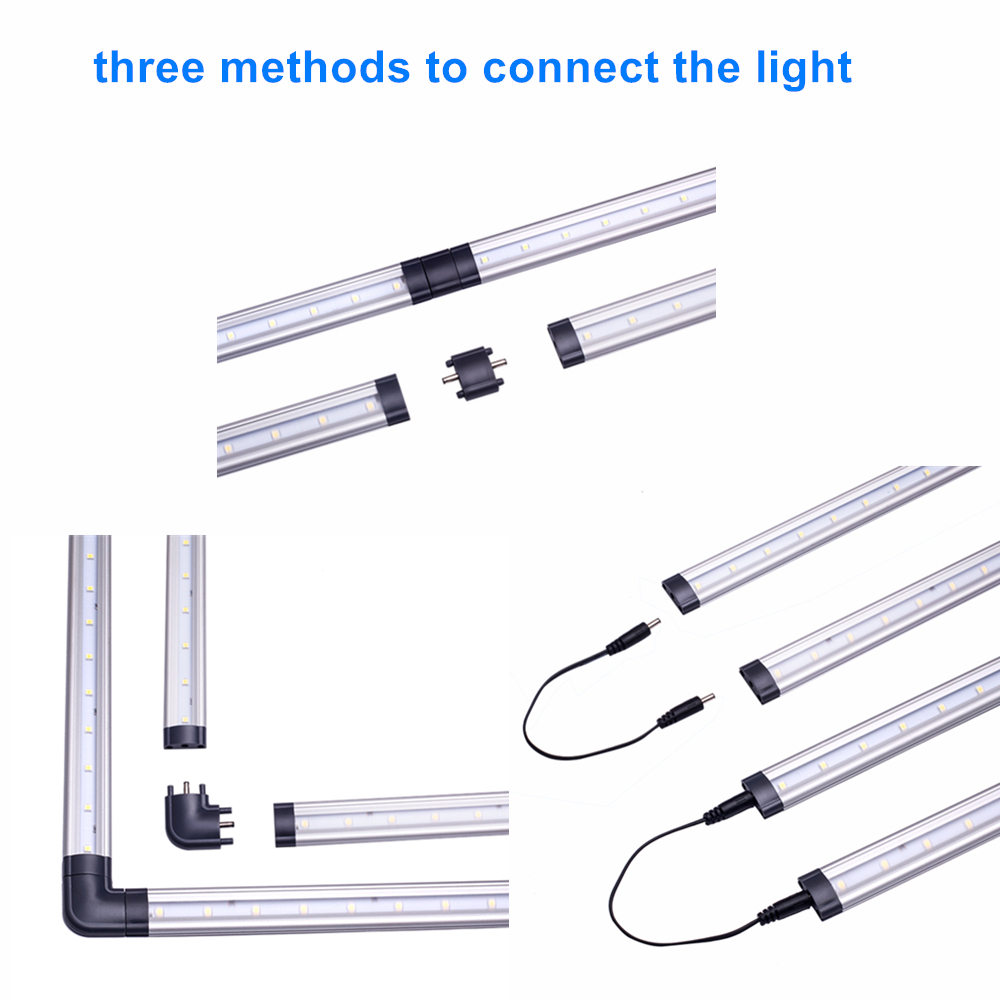

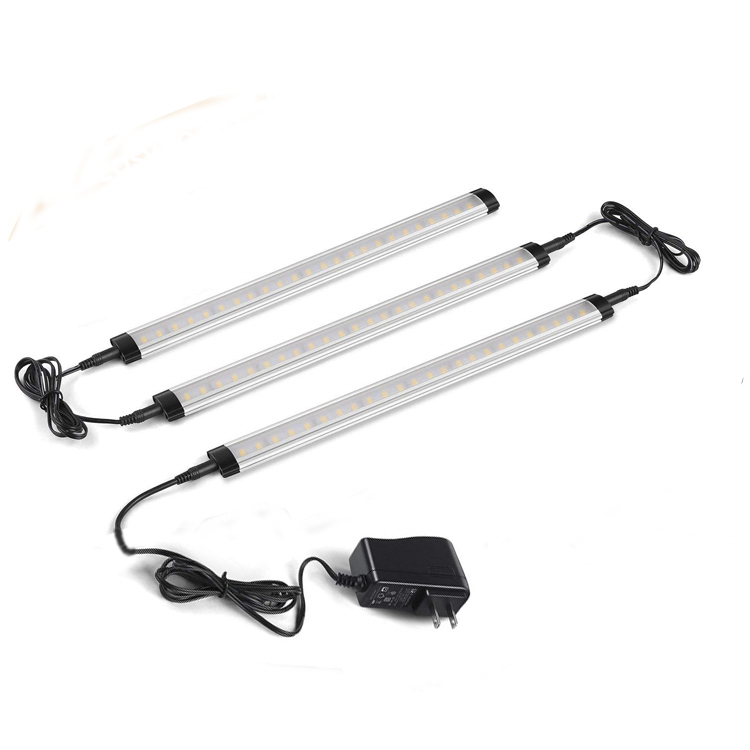

LED Lighting with Linkable and Dimmable, 3 methods to connect the light, Different lengths for you to choose.
Rugged and Applicable Place: It is made of aluminum and plastic with a rust and corrosion-resistant protective shell, which helps extend the life of the cabinet light. Perfect lighting for kitchen counters, closets, sinks, shelves, bookcases, TV cabinets, etc.
Super Bright and Energy Saving: Only using 10W LED light bar can provide high brightness of 800lm, which is equivalent to 120W fluorescent lamp, which can help reduce energy consumption by 85%. Brightness and comfort illuminate dark spaces, suitable for small areas and large spaces. Outstanding energy saving and environmental protection features ensure that your lamps have a long life.

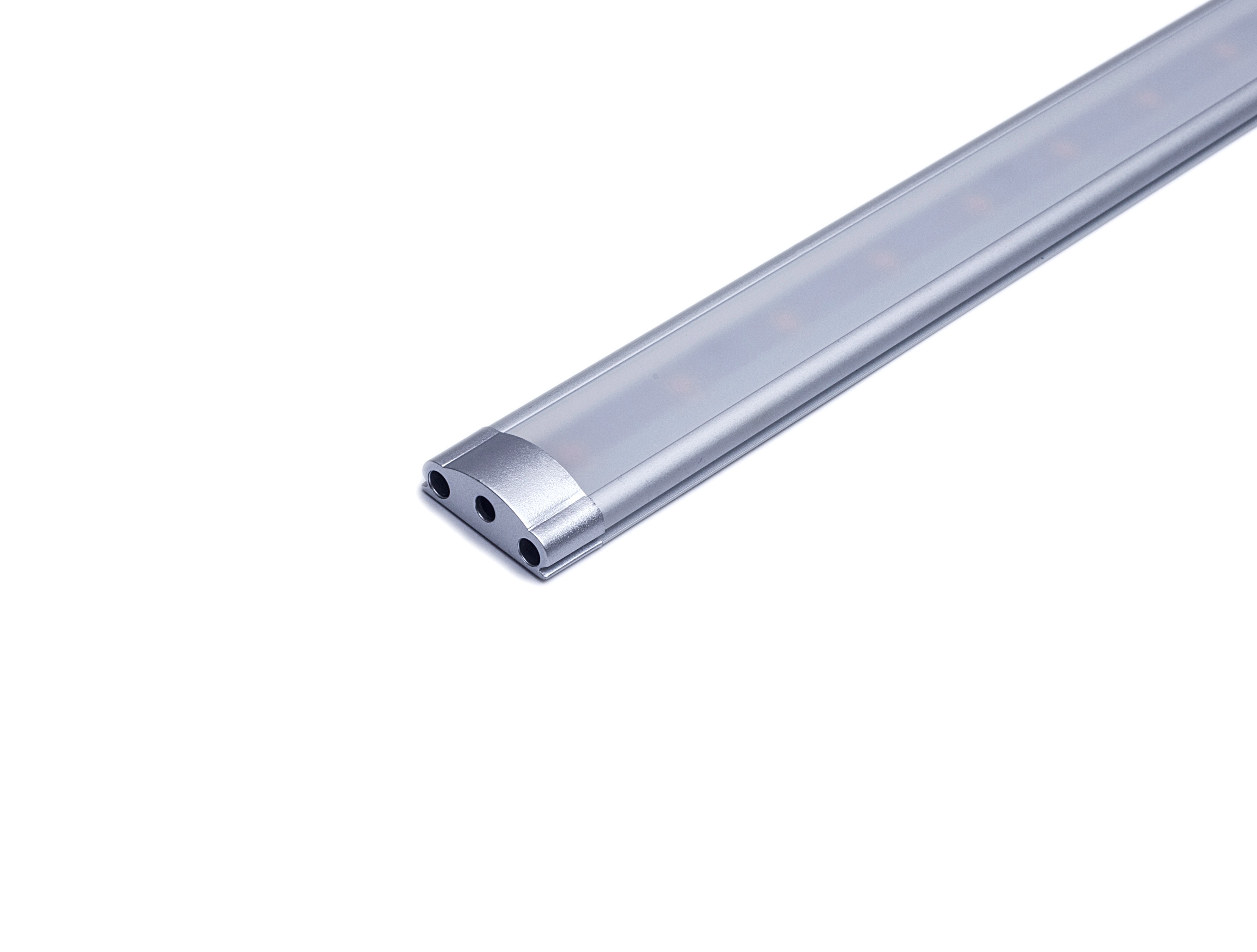

Product detail drawing

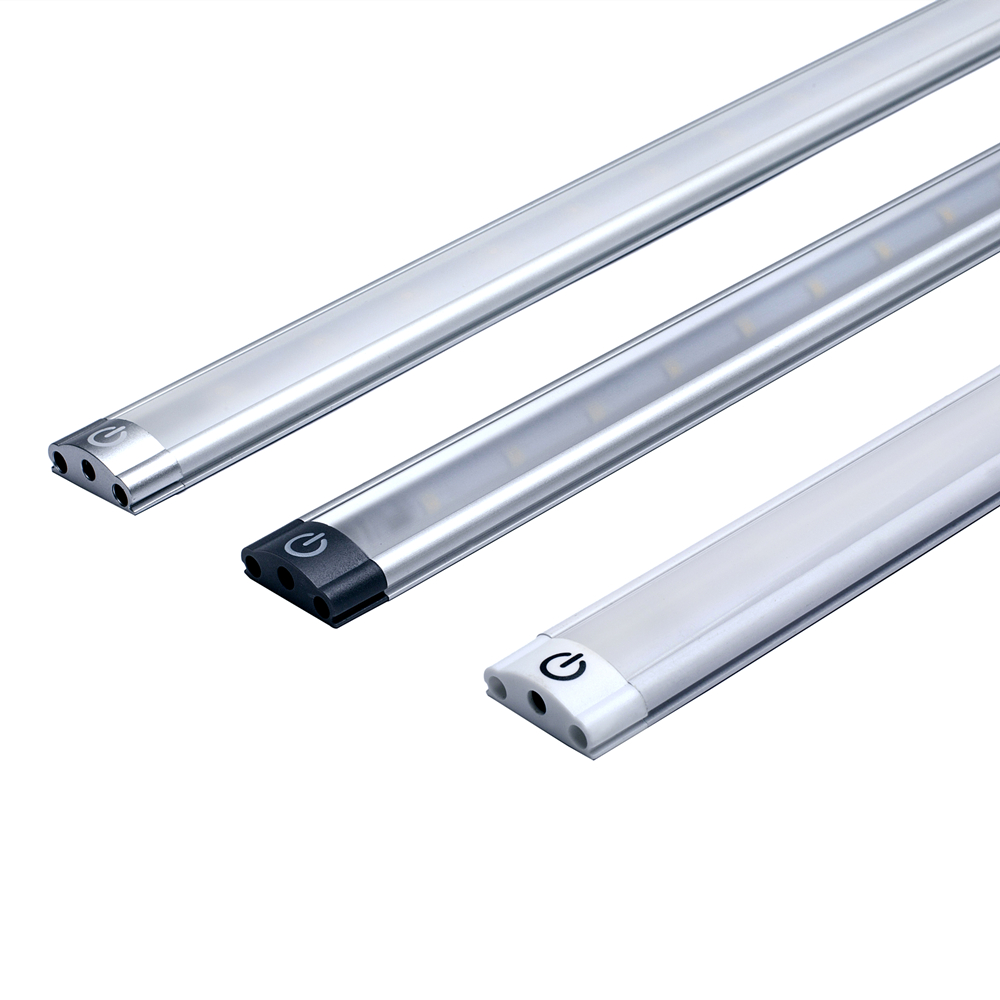

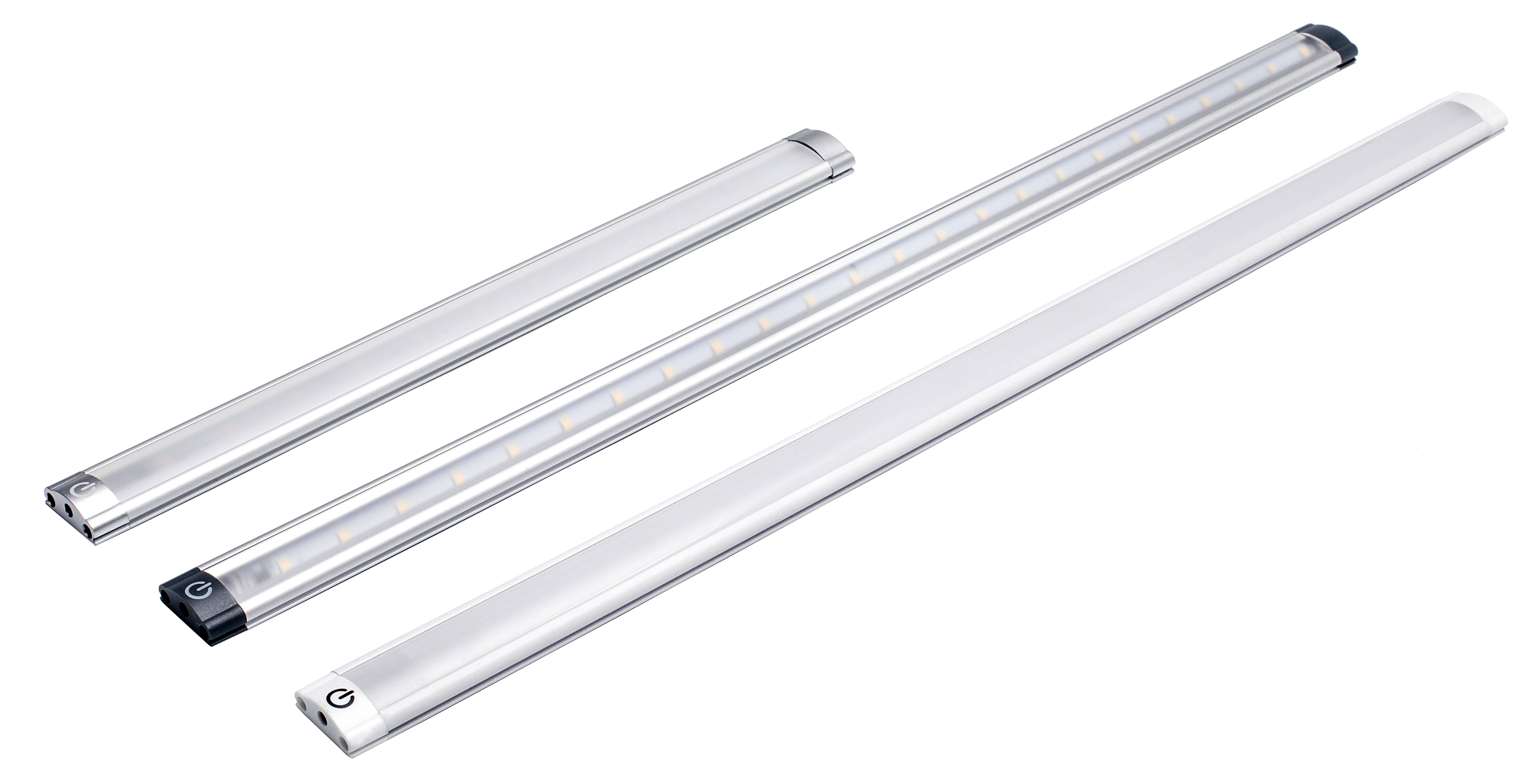

The whole light could be white, black, or silvery. Design very simple and generous.
SUPER BRIGHT: 3pcs Extendable Under Counter LED Light Bars Daylight 6000K, Dimmable RF Remote Control for Cupboard, Wardrobe, Locker, Counter, Closet Lighting.

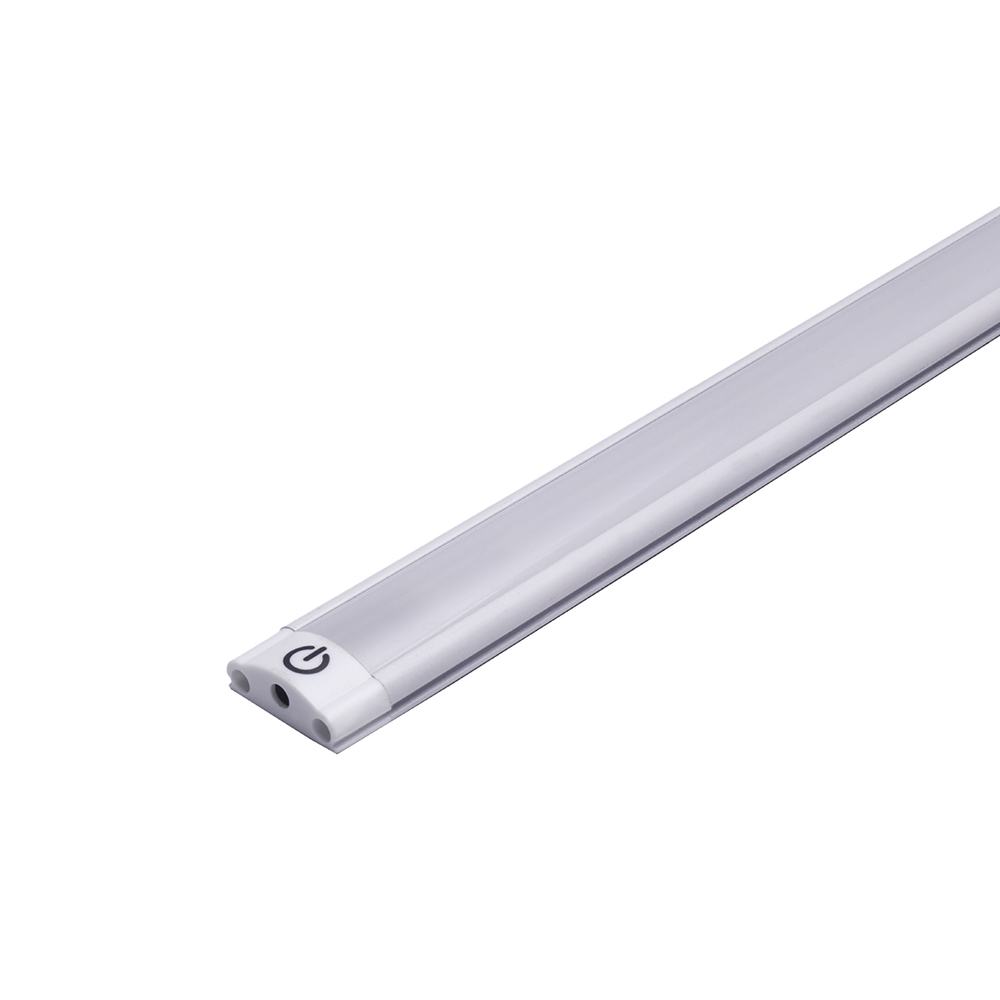

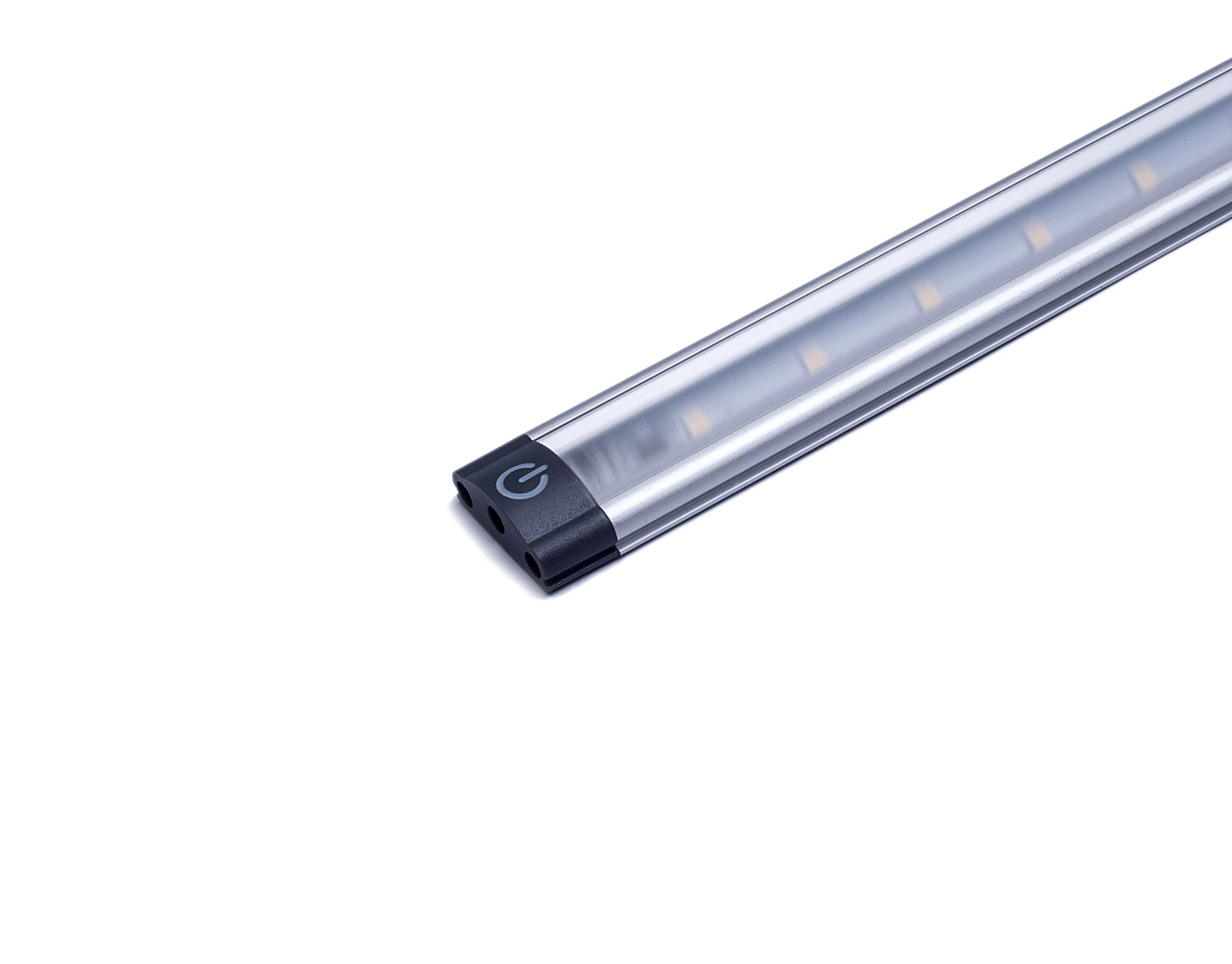

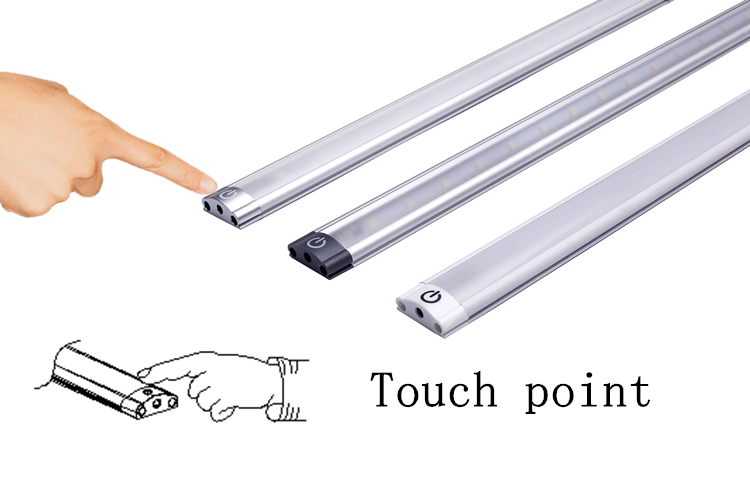

Single Point Touch function (LS25P):

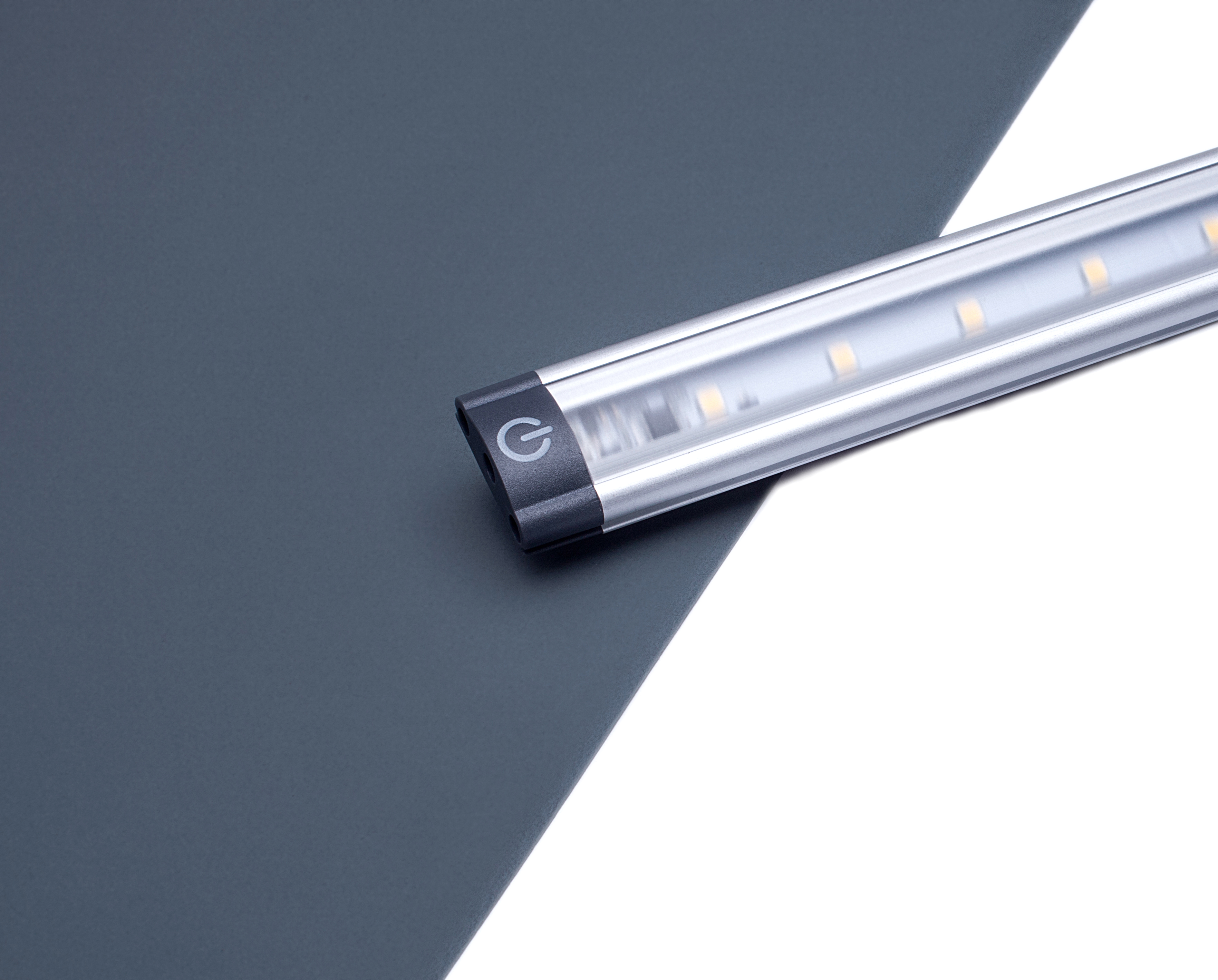

Touch a point of the light right side body to control light ON/OFF.
Single Point Touch with dimmable function(LS25PD):
Touch a point of light right side body to control light ON/OFF. It can be dimmed to 6%, 50% and 100%.

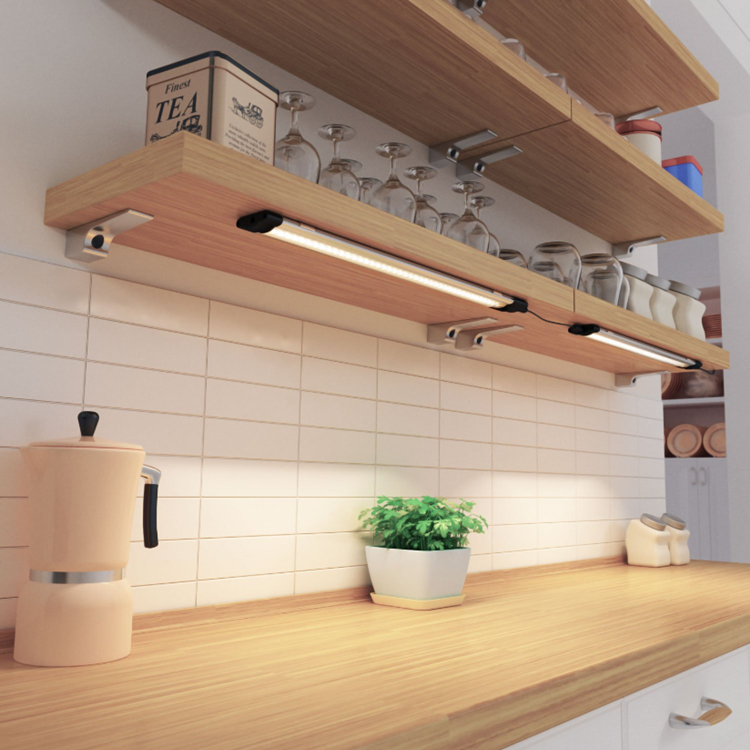

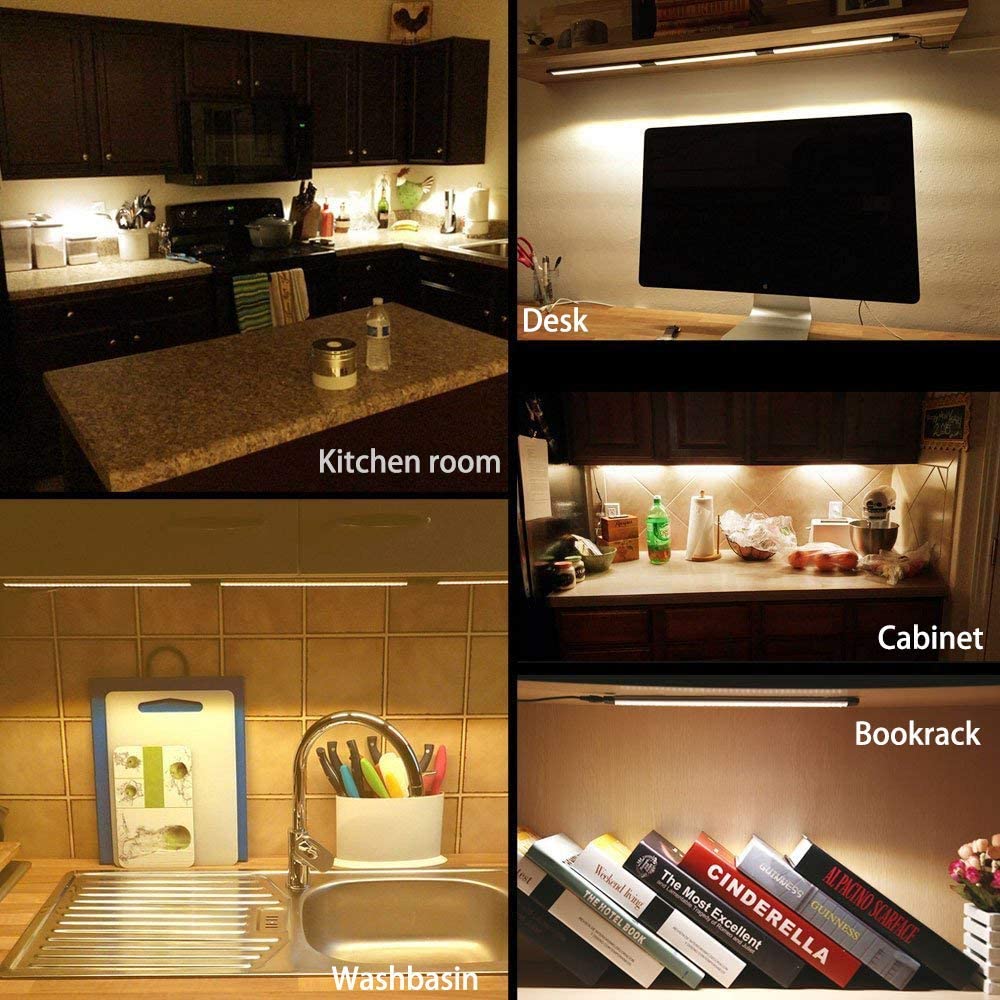

This under counter lighting is suited for an array of applications – sink, display, bookcase, hutch, workbench, pantry, under closet, etc.

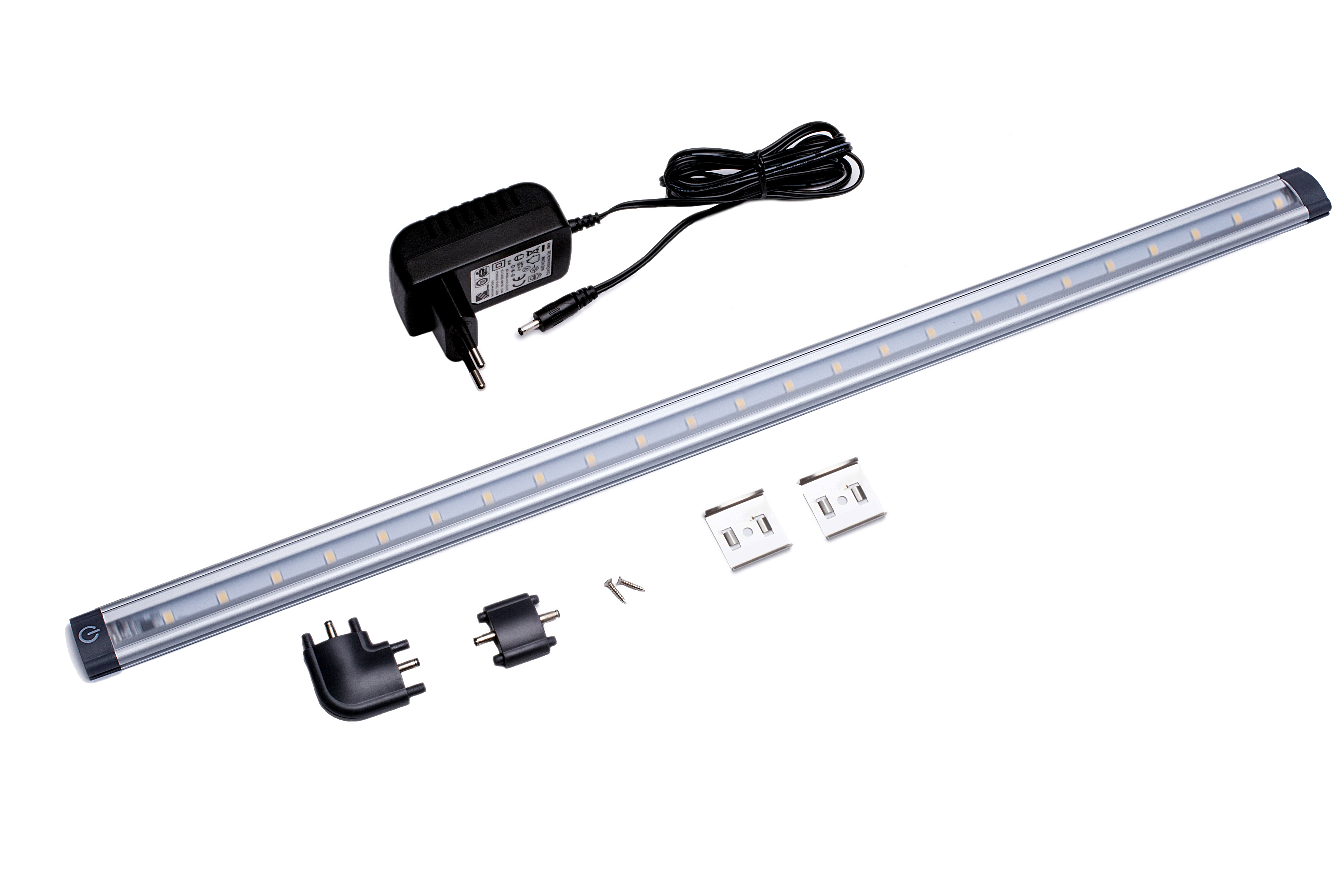

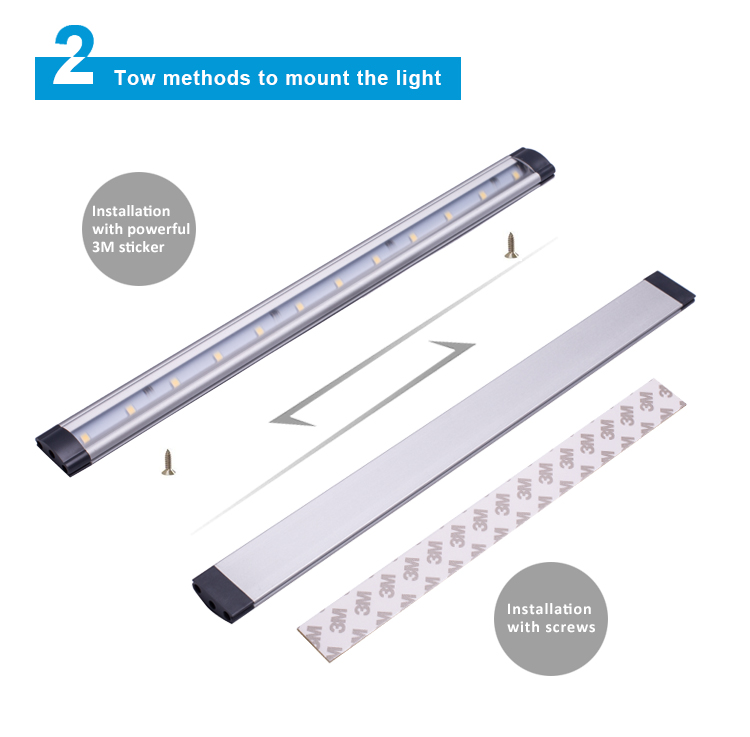

It can be installed by yourself in seconds. All installation accessories included, two flexible mounting ways:

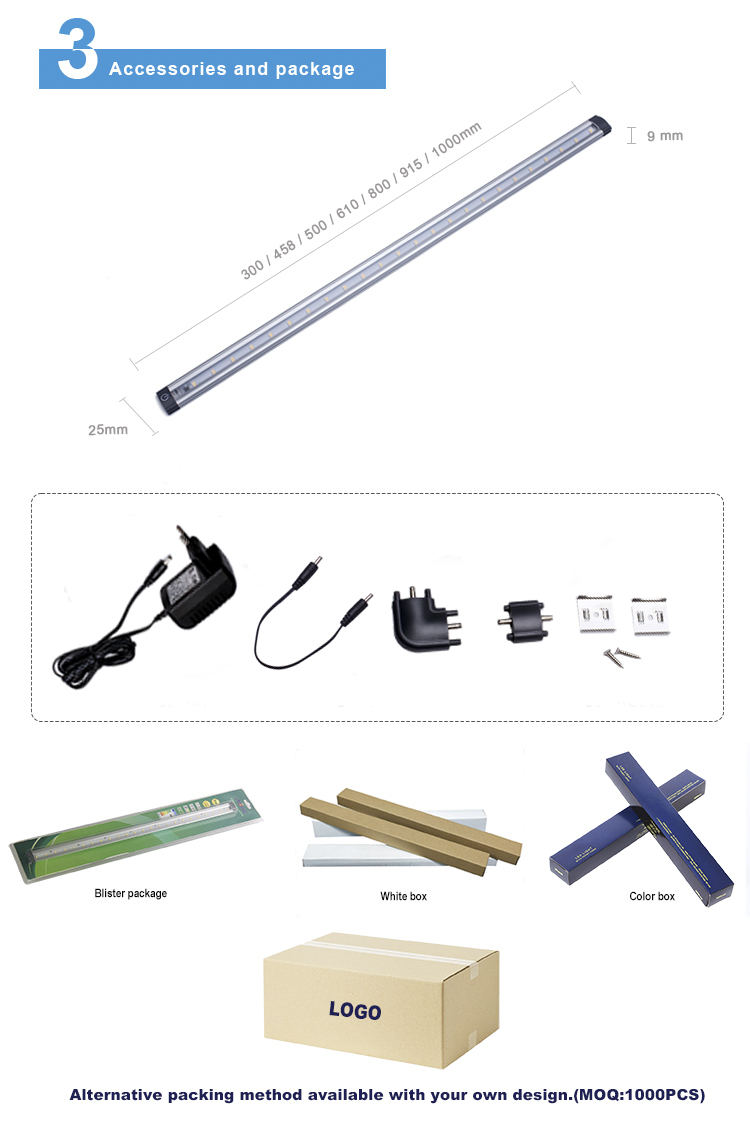

Size introduction and size picture
| Product Specifications | |
|---|---|
| Material | Aluminum + PMMA |
| Parts | Mounting hardware, Screws |
| Dimensions | 25mm(W) x 9mm(H) x 300/458/500/610/800/915/1000mm(L) |
| Light Source | High brightness SMD2835 LED |
| Operating Temperature | -20°C to 45°C - Indoors |
| Warranty | 2 years with proper installation |
| Installation | 2pcs M2.5 screws allows easy installation |
| Ingress Protection Grade | IP20 |
| Technical - Electrical Data | L300S251 | L500S251 | L800S251 | L1000S251 |
|---|---|---|---|---|
| Rated wattage | 3W | 5.5W | 8.5W | 10.5W |
| Rated lamp efficacy | 75lm/W | 75lm/W | 75lm/W | 75lm/W |
| Rated Current | 0.35A | 0.55A | 0.8A | 0.95A |
| Rated voltage | 12VDC | 12VDC | 12VDC | 12VDC |
| Led quantity | 12pcs | 24pcs | 36pcs | 48pcs |
| Luminous Flux | 225lm | 410lm | 635lm | 785lm |
| Color Temp | 2700-6500k | 2700-6500k | 2700-6500k | 2700-6500k |
| Angle | 90° | 90° | 90° | 90° |
| Lifespan | 30000H | 30000H | 30000H | 30000H |
Our factory is approved by BSCI. The light has CE, ROHS and GS certificate by TUV and SGS.
Established in 2010, we specialized in manufacturing cabinet lights, LED IP44 bathroom mirror lights, and LED mirrors. Our R&D team can meet various customized requirements from different markets like EU, North America, and Southeast Asia, etc. The products are certified and in compliance with target market's regulations like UL, CE, ROHS, GS, and ERP etc.

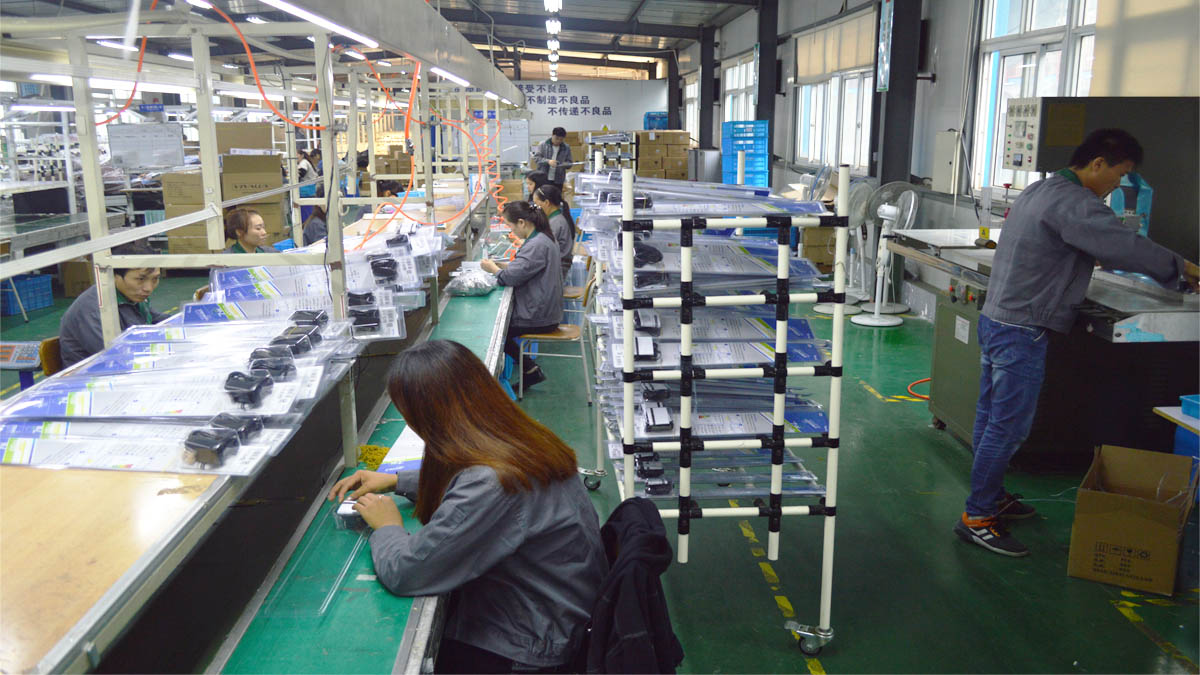

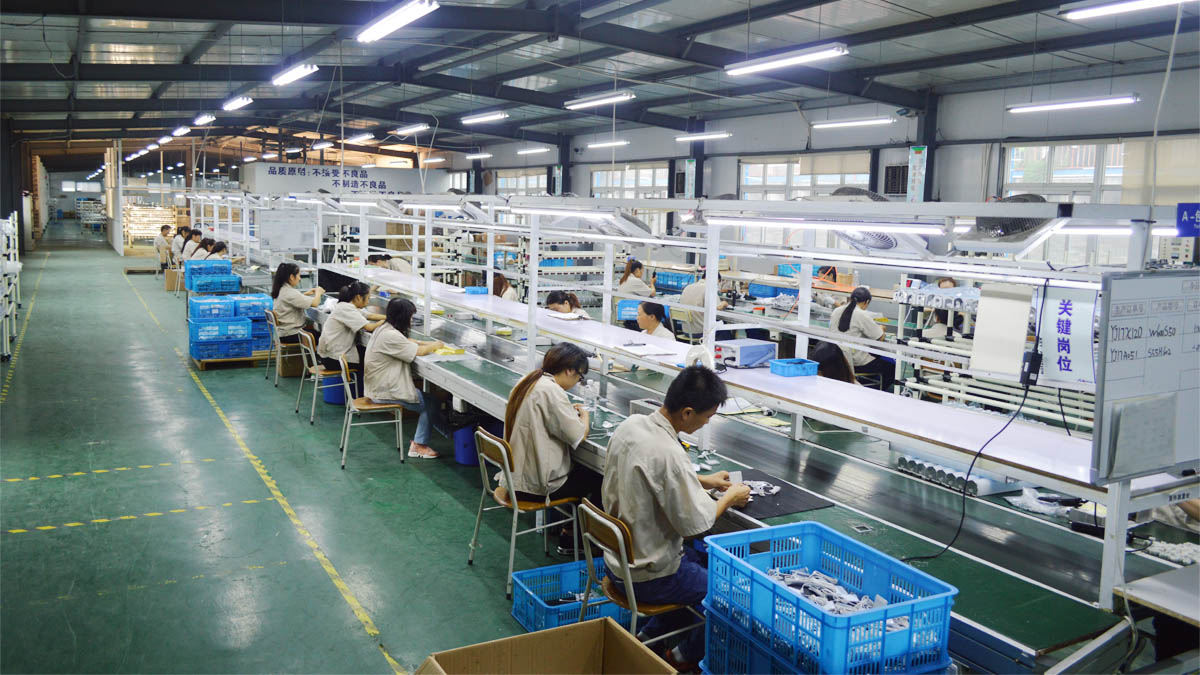

Our production is BSCI audited and certified, and the management system is strictly implemented according to ISO9001. We invest significant time and effort to phase in advanced production lines, testing devices, and quality control teams.
