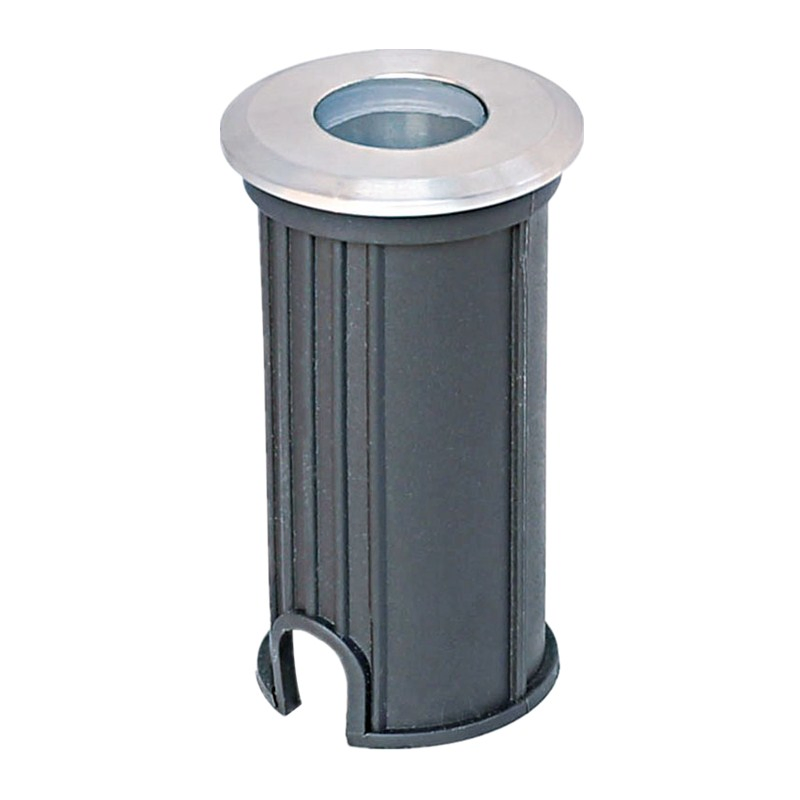

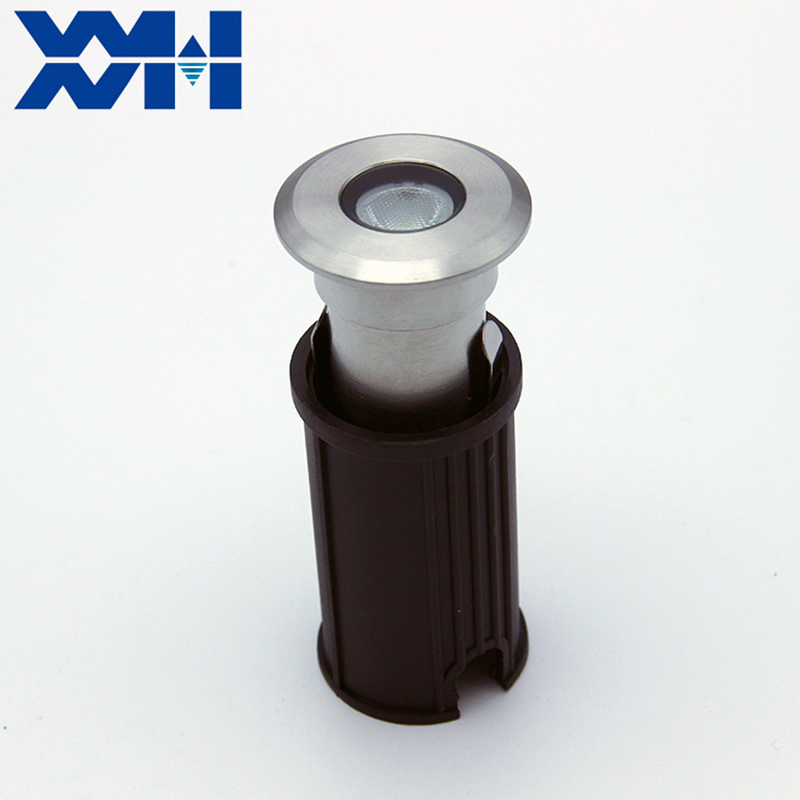

IP68 Landscape LED Horizontal RGB Step Ground Garden Floor Pool Underground Inground Light

Basic Info

Model NO. 52GM

Power 1W/3W

No. of Light Source 1

IP Rating IP68

Application park

Certification CE, EMC, LVD, RoHS, VDE, IP68/ISO9001

Input Voltage 24v

Light Source With Light Source

LED Chips Brand Epistar

Product Name Underground LED Deck Light

LED Chip Epristar

CCT 2700-7000K Optional

CRI 80

Warranty 2years

Beam Angle 10-120 Degree Optional

Cable Len 1 Meter

Name Outdoor LED Underground Light

Transport Package Depends on Quantity

Specification 1W/3W

Origin China

HS Code 9405409000

Production Capacity 100000PCS/Years

Packaging & Delivery

Package Size 48.00cm * 38.00cm * 38.00cm

Package Gross Weight 30.000kg

Product Description

IP68 Landscape LED Horizontal RGB Step Ground Garden Floor Pool Underground Inground Light

Product Description of the underground led pool light:
IP68 3W 6W 9W LED Landscape Light Outdoor LED Up Light LED Underground Light Garden Up Light LED Inground Light with Stainless Steel Front Cover for Plaza/Park/Courtyard/Pedestrian Mall/ Landscape/Architectural Lighting

Feature and Benefits:

★ IP68 waterproof for outdoor walk/path/ parking lot/garden/square lighting use.
★ Input Voltage: 12V/24VDC standard.
★ Rich Color for options: Single Color and RGB Color.
★ RGB version can be worked with DMX+DMX Decoder or remote controller.
★ Stainless steel front cover + tempered step glass + aluminum alloy can withstand car traffic.
★ Using high-quality and high-precision material and structural waterproof, easy to maintain.

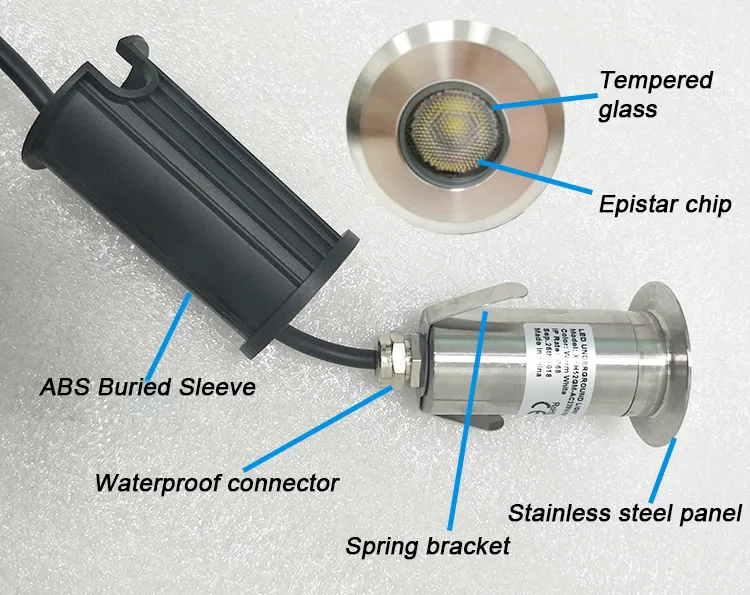

Main Specification:

✔ Housing: Outdoor dark grey powder coated aluminum T=60-80um Adhesion of ISO class 1/ASTM class 4B
✔ Front Cover: 304# or 316# Stainless Steel
✔ LED Source: 3x1W/3x2W/3X1 RGB/3x2W RGB/3x3W RGB 3in1 LED
✔ Lens: Optical lens, efficiency ≥85%
✔ Glass: Tempered step glass T=8mm
✔ Glass pressure capacity: Full area=2500kgs
✔ Gasket: Molding shaped silicone seal
✔ Operating temperature: -20ºC to 40ºC
✔ Mounting sleeve: ABS

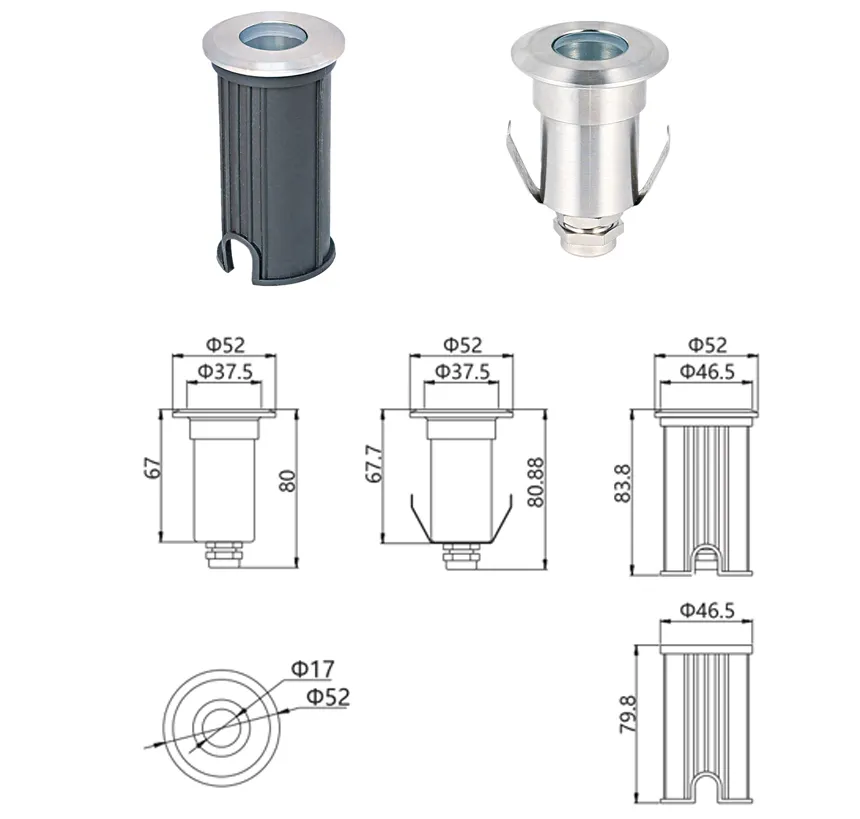

IP68 Landscape LED Horizontal RGB Step Ground Garden Floor Pool Underground Inground Light Specifications

Product name	underground light	Life Span	>50000hr
Application	ground, garden, lawn, square, street	Lumens	90-100ml/w
Power	1w, 3w	Diameter	52mm
Voltage	12v, 24v, 220v	Height	60mm
Material	304 Stainless steel	Warranty	2 years
LED chips	Epistar/Cree	Beam angle	10-90
Working temperature	-40 to +45	Color	R/G/B/W/Y/P/RGB/RGBW
IP Grade	IP68 Waterproof	Control Method	single color control, multicolor internal control, external control, dmx, wifi, remote control
Certifications	CE, ROHS, IP68	Weight	0.5kg

Application

The waterproof LED lights could apply to gardens, squares, and lawns. With an IP68 waterproof rating, they are also highly suitable for underwater pool installations.

Common Applications:

Underground lights, underwater lights, swimming pool lights, and fountain lights.

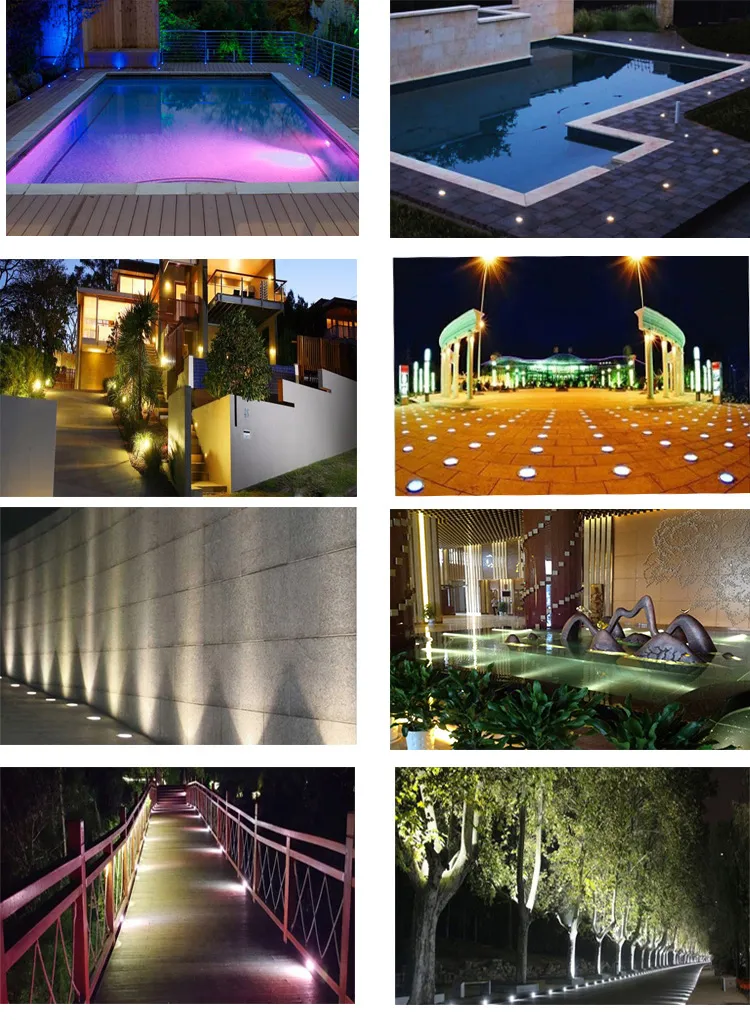

IP68 Landscape LED Application Scenarios

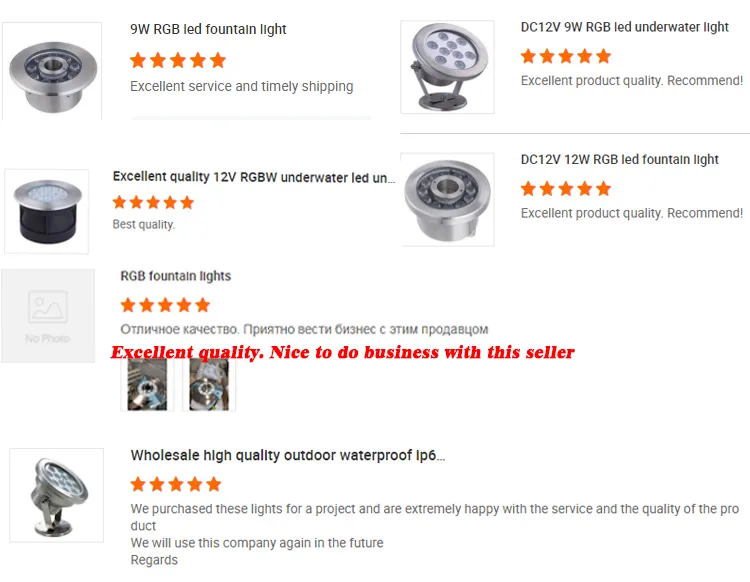

Customer Reviews

Company Profile

Our company is a professional outdoor landscape lights factory specialized in LED Underwater lights, LED Fountain Lights, LED Underground Lights, LED Pool Lights, LED Wall Washer Lights, and various other outdoor landscape lights. Our products have successfully passed ISO9001-2015, CE, ROHS, and IP68 protection level certifications.

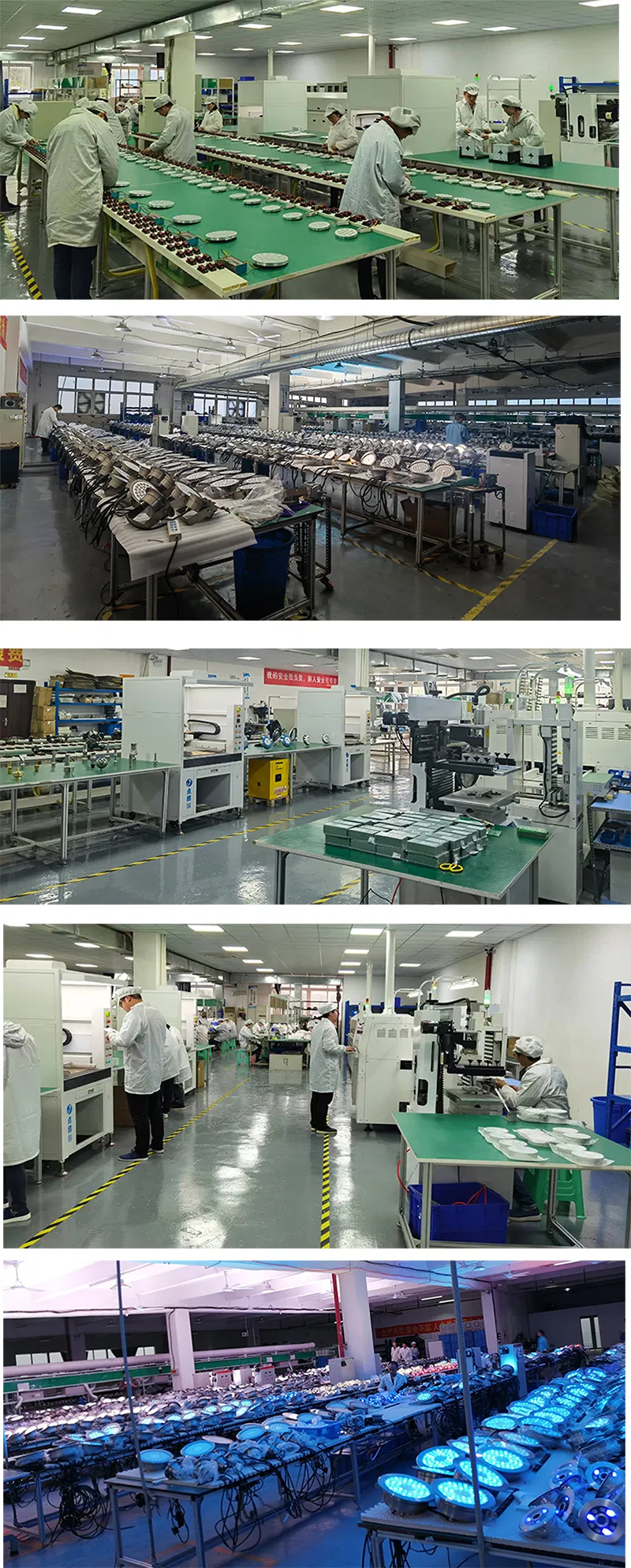

We implement strict quality control regulations. From initial design, raw material procurement, material storage, production, quality control, to product testing and after-sales service, the entire process complies with standard regulations. Our production infrastructure features six main assembly lines and a dedicated quality testing team, ensuring a monthly capacity of over 10,000 units.

Our products have passed ISO9001 certification, CE certification, RoHS certification, IP68 protection level certification, and hold more than 120 national patents.

Frequently Asked Questions (FAQ)

Q What is the waterproof rating of this underground light?

This light features a true IP68 waterproof rating, which means it is fully dust-tight and designed to handle continuous submersion in water, making it ideal for swimming pools, fountains, and wet landscape grounds.

Q Can this inground light withstand heavy loads?

Yes. Constructed with a 304 or 316 stainless steel front cover, a robust aluminum alloy housing, and a thick tempered step glass top, it can withstand a maximum surface pressure capacity of up to 2500 kg, making it suitable for driveways and pedestrian walkways.

Q What input voltages are supported?

The standard input voltage options are 12V and 24V DC to ensure safety in wet and outdoor locations. Standard high-voltage (220V) configurations are also available depending on the application environment.

Q What control methods are available for the RGB color options?

For RGB color-changing configurations, the lights can be operated via single color control, multicolor internal control, external control, DMX control systems, WiFi controllers, or standard remote controls.

Q What is the expected lifespan and warranty of these lights?

Equipped with high-performance Epistar or Cree LED chips, these light fixtures feature a service life of over 50,000 hours and are backed by a comprehensive 2-year warranty.
